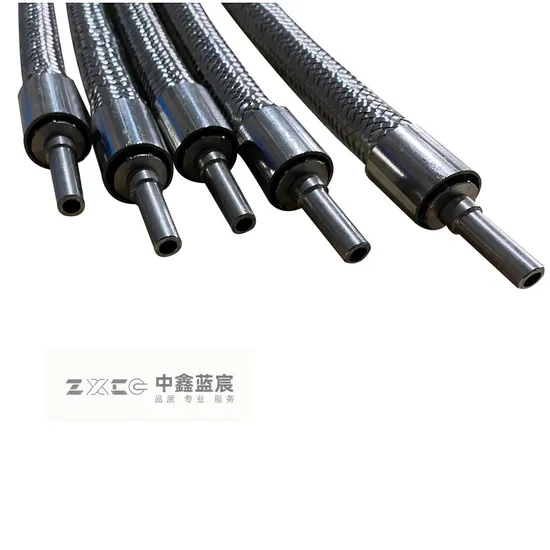

Flexible Braided Reinforced Heat Delivery Fuel Oil Hose Rubber Assembly Hydraulic Hose


Quantity:

Inquire Add to Basket

Customization:	Available
Application:	Automotive Industry, Food Processing, HVAC Systems, Industrial Machinery, Plumbing
Certification:	CE, ISO9001

High Pressure Oil Pipe High-Pressure Hoses Flexible Braided Reinforced Heat Delivery Fuel Oil Hose Rubber Assembly Hydraulic Hose

Product Description

Basic Info.

Diameter

1 inch

Length

200 feet

Material

Natural Rubber

Size

Customized Size

Quality

100% Professional Test

Model Number

High Pressure Rubber Hose

Transport Package

Wooden Crate

Specification

04 05 06 08

Trademark

zhongxinlanchen

Origin

Hengshui Hebei

HS Code

4009110000

Production Capacity

100000

Product Description

KEY PERFORMANCE: EN/DIN and new SAE rated working pressures

Appearance: Wrap( I.D less than 25.4mm smooth cover)

Colour: Black, blue, yellow, green, gray

Continuous service temperature range: -40°f / +212°f; -40°c / +100°c

Max operating temperature: 250°f 121°c

Insert: shf-type

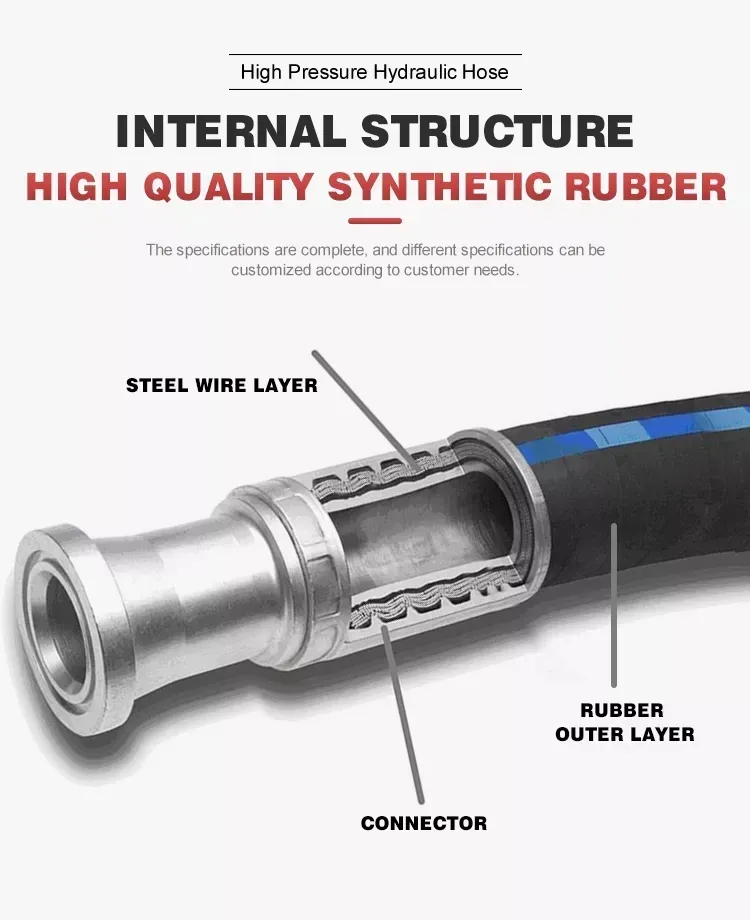

Tube: oil resistant synthetic rubber

Reinforcement: one high tensile steel braid

Cover: environment resistant synthetic rubber

Applicable specs: EN 853 1SN - SAE 100 R1AT - ISO 1436-1 1SN/R1AT

APPLICATIONS & FLUIDS

Hydraulics: Low-medium pressure lines, return lines

Mineral oils, vegetable and rape seed oils, glycol and polyglycol based oils, synthetic ester based oils, oils in aqueous emulsion, water.

Construction preparation → Inspection of clamps → Pipe groove rolling → Drilling → Installation of tees and crosses → Pipeline installation → System pressure testing.

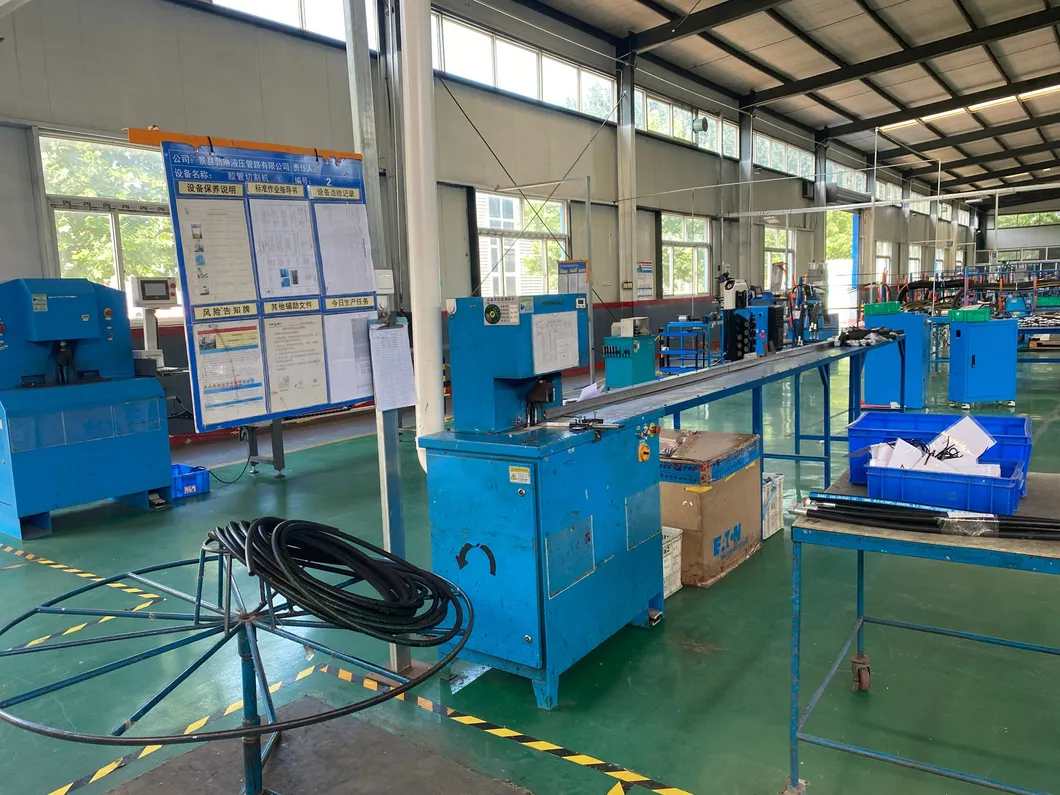

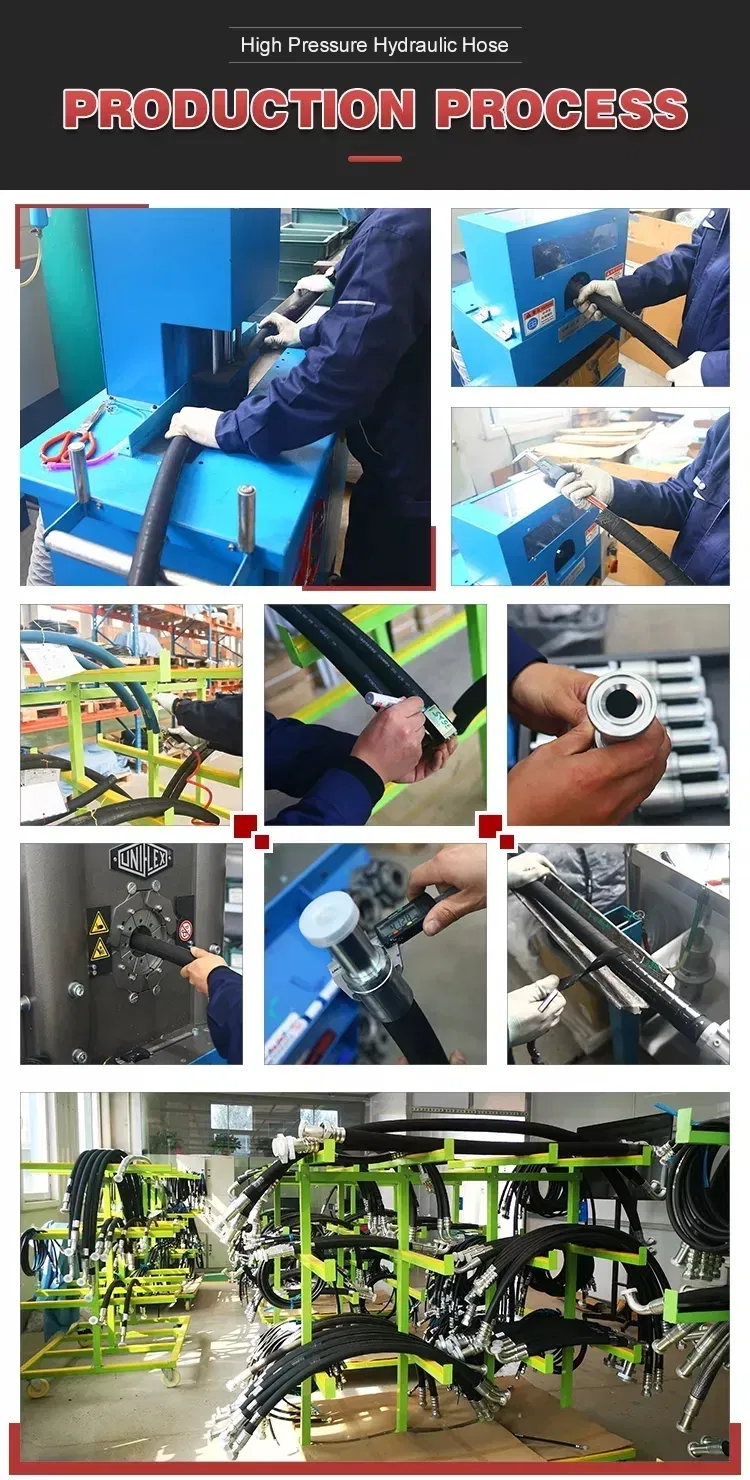

Hose cutting process

SAE 100 R1 AT HT/DIN EN 8531SN HT
DN	Hose ID		Wire 0.D	Hose 0.D	Working Pressure		Burst Pressure		Minimum Bend Radius	Weight	Length
DN	inch	mm	mm	mm	MPa	psi	MPa	psi	mm	kg/m	meters
5	3/16	4.8	9.5	11.8	25.0	3630	100.0	14280	89	0.19	50/100
6	1/4	6.4	11.1	13.4	22.5	3270	90.0	12840	102	0.21	50/100
8	5/16	7.9	12.7	15.0	21.5	3120	85.0	12280	114	0.24	50/100
10	3/8	9.5	15.1	17.4	18.0	2615	72.0	10280	127	0.33	50/100
13	1/2	12.7	18.3	20.6	16.0	2320	64.0	9180	178	0.41	50/100
16	5/8	15.9	21.4	23.7	13.0	1890	52.0	7420	203	0.45	50/100
19	3/4	19.0	25.4	27.7	10.5	1530	42.0	6000	241	0.58	50/100
25	1	25.4	33.3	35.6	8.8	1280	35.0	5020	305	0.88	50
32	11/4	31.8	40.5	43.5	6.3	920	25.0	3600	419	1.23	20 to 40
38	11/2	38.1	46.8	50.6	5.0	730	20.0	2860	508	1.51	20 to 40
51	2	50.8	60.2	64.0	4.0	580	16.0	2280	635	1.97	20 to 40

Flexible Braided Reinforced Heat Delivery Fuel Oil Hose Rubber Assembly Hydraulic Hose
Q: How to pay express charges if order samples?

A: For those customer, who has DHL, FedEx, TNT, UPS account, can give us your account and we will send the samples by freight collected. For those customers, who do not have an express account, we will calculate the express freight charge for you and you can pay the freight charge directly to our company account. Then we will delivery the samples of flexible metal hose by prepaid.

Q: How to pay sample charges?

A: You can pay to pur company account. When we received the sample fee, we will arrange to make the samples for you, The prepare tiome for sample of flexible metal hose will be 3-7 days.

Q: How to order your items?

A: If you have the drawings of products like flexible metal hose, send them to us, we can production the items according to your drawings perfectly! If you not have drawings, please tell us the size, material, quantity, pressure, medium of the item you want, then our technical section will provide drawings for you to confirm the right specification. Finally make you satisfied!
